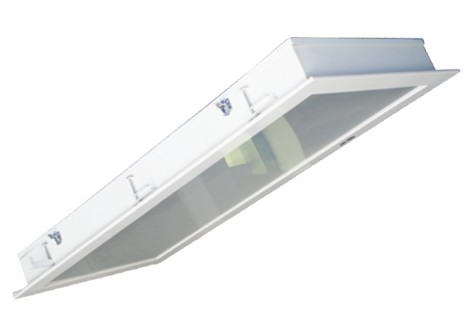

HR-MF clean light
Protection class IP65 sealed embedded clean fluorescent lighting suitable for pharmaceutical plants, food processing plant and industrial clean storage plant
Light body : high quality cold-rolled steel from finishing , exterior degreasing phosphating, electrostatic spraying . Corrosion resistance, wear resistance, and difficult to yellow.
Shade: shock resistant , anti-aging acrylic , white light, soft, transparent color brightness and good .
Electric : The international wires, high-performance electronic ballasts, flame retardant holder.
Insulation Class : Class | Protection: IP65
Emergency device can be set
Light Source : 18W 36W 58W
Hospitals, pharmacies
Food processing, ideal for warehousing and industrial clean room lighting.
A variety of lamp body size and type of light source options. 100-100.000 cleanliness level for the occasion .
Product description :
Ultra-thin frame design lamps close to the ceiling, light body and high-density padding in the middle rear seal . No dust , easy to clean , no glare .
Product standards and technical requirements:
GB7000.10-1999, GB7000.1-2007, GB17743-1999, GB17625.1-2003
Application areas :
Hospitals, pharmacies , food processing , warehousing and industrial clean rooms.
Product parameters:
Model |
Technical Specifications |
Body Size (mm) |
/ Box |
Voltage |
HR-MF 6x58W |
6x58W |
1615x540x80 |
14 |
AC220V |
HR-MF 5x58W |
5x58W |
1615x540x80 |
14 |
AC220V |
HR-MF 3x58W |
3x58W |
1615x325x80 |
12 |
AC220V |
HR-MF 3x36W |
3x36W |
1315x325x80 |
10 |
AC220V |
HR-MF 2x36W |
2x36W |
1315x325x80 |
10 |
AC220V |
HR-MF 3x18W |
3x18W |
705x325x80 |
7 |
AC220V |
HR-MF 2x18W |
2x18W |
705x325x80 |
7 |
AC220V | |
