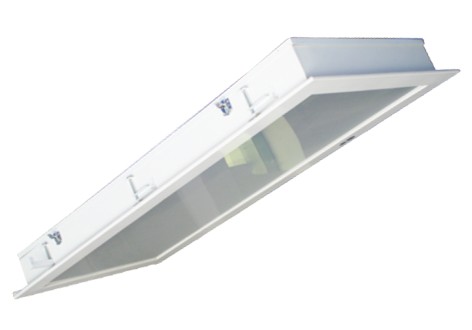

HR-MF clean light

HR-MF clean light

Protection class IP65 sealed embedded clean fluorescent lighting suitable for pharmaceutical plants, food processing plant and industrial clean storage plant

Light body : high quality cold-rolled steel from finishing , exterior degreasing phosphating, electrostatic spraying . Corrosion resistance, wear resistance, and difficult to yellow.

Shade: shock resistant , anti-aging acrylic , white light, soft, transparent color brightness and good .

Electric : The international wires, high-performance electronic ballasts, flame retardant holder.

Insulation Class : Class | Protection: IP65

Emergency device can be set

Light Source : 18W 36W 58W

Hospitals, pharmacies

Food processing, ideal for warehousing and industrial clean room lighting.

A variety of lamp body size and type of light source options. 100-100.000 cleanliness level for the occasion .

Product description :

Ultra-thin frame design lamps close to the ceiling, light body and high-density padding in the middle rear seal . No dust , easy to clean , no glare .

Product standards and technical requirements:

GB7000.10-1999, GB7000.1-2007, GB17743-1999, GB17625.1-2003

Application areas :

Hospitals, pharmacies , food processing , warehousing and industrial clean rooms.

Product parameters:

Model Technical Specifications Body Size (mm) / Box Voltage
HR-MF 6x58W 6x58W 1615x540x80 14 AC220V
HR-MF 5x58W 5x58W 1615x540x80 14 AC220V
HR-MF 3x58W 3x58W 1615x325x80 12 AC220V
HR-MF 3x36W 3x36W 1315x325x80 10 AC220V
HR-MF 2x36W 2x36W 1315x325x80 10 AC220V
HR-MF 3x18W 3x18W 705x325x80 7 AC220V
HR-MF 2x18W 2x18W 705x325x80 7 AC220V
