 Products >>>

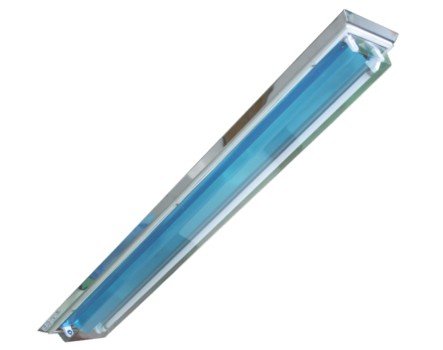

HR6810-T8 lamp bevel clean

HR6810-T8 lamps fixed clean. Apply to electronic plants, pharmaceutical plants, high standard clean room lighting

Light body: high quality stainless steel and cold rolled sheet

Shade: shock resistant, anti-aging, high temperature treatment does not change color acrylic molding

Appliances: GB wires, flame lamps, high-performance electronic ballasts.

Insulation Class: Class | Protection class: IP 44

Emergency device can be set

Applicable Lighting: T8 18W 30W 36W



Product description:

Light body design hypotenuse is easy to clean, simple appearance, interior mirror reflector, lamp and lamp body is connected with high-quality seal.

Product standards and technical requirements:

GB7000.201-2008, GB7000.1-2007, GB17743-2007, GB17625.1-2003

Application areas:

Electronic plants, pharmaceutical plants, factories and other high cleanliness standards.

Model

Technical Specifications

Body Size (mm)

/ Box

Voltage

HR6810 3x26W T8

3x36W

1326x307x70

4

AC220V

HR6810 2x26W T8

2x36W

1313x272x70

4

AC220V

HR6810 3x36W T8

1x36W

1313x165x80

4

AC220V

HR6810 1x30W T8

3x30W

1014x165x80

4

AC220V

HR6810 2x30W T8

2x30W

1014x242x70 4

AC220V

HR6810 2x30W T8 1x30W 1014x165x70 4

AC220V

HR6810 3x18W T8 3x18W 714x307x70 4

AC220V

HR6810 3x18W T8 2x18W 714x242x70 4

AC220V

HR6810 3x18W T8 1x18W 714x165x70 4

AC220V
