Rail type teardrop lamp
  • 图片展示
  • 图片展示
  • 图片展示
  • 图片展示

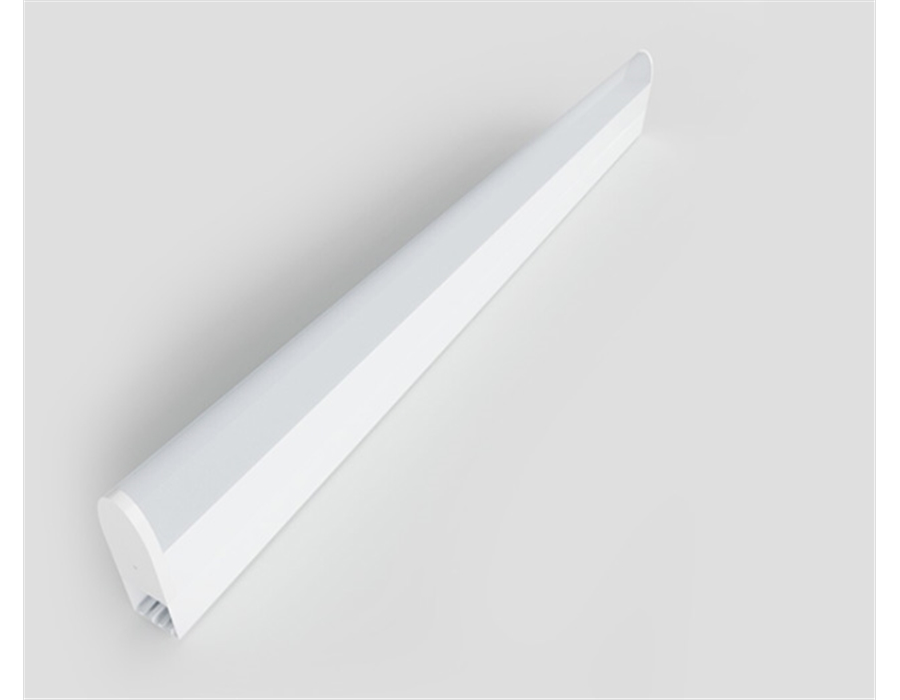

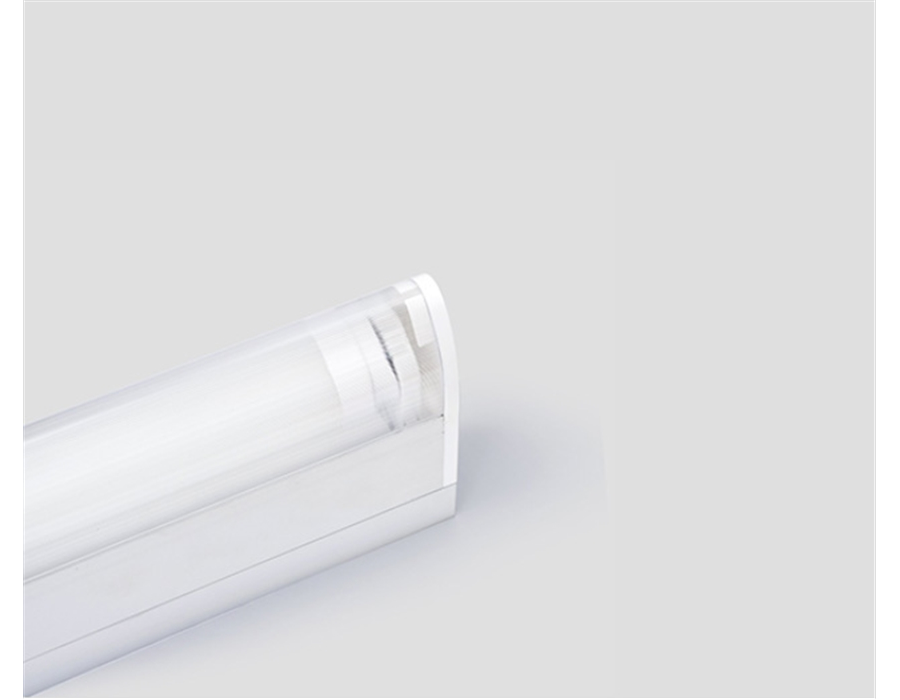

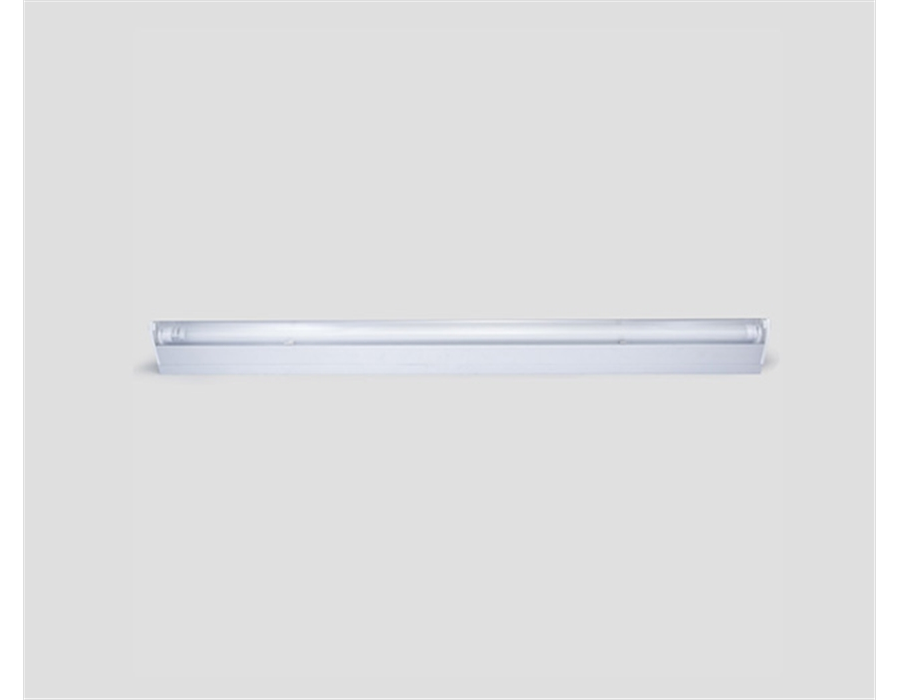

TMX Tear Drop Lamp. The lampshade design is teardrop shaped or without a cover, and the lamp connection can be assembled using guide rails or installed separately, with quick connecting wires inside. Suitable for lighting in wards, laboratories, high standard clean rooms, etc。


Product Features

Lamp body: Made of high-quality aluminum alloy extrusion molding, with an oxidized frosted or electrostatic spray coating on the surface.
Lampshade: Made of PC or acrylic material.
Electrical appliances: National standard wire, flame retardant UL certified lamp holder, with safety terminal block.
Supporting light source: LED white light tube or UV resistant LED tube (filtering spectra below 500nm), with an average lifespan of 50000 hours.
Protection level: IP40
Personalized customization: Customizable lamp size and required light source parameters.
Product standards and technical requirements

 GB 17625.1-2022;GB/T 17743-2021;GB/T 7000.1-2023;GB/T7000.201-2023


Product Model Supporting lamp tube(LED )  Lamp body dimensions( mm )  luminous flux(lm） power factor
TTX118  1×18W 1245×50×150 1×2600 0.95
TTX122 1×22W 1545×50×150 1×4000 0.95


Main productsClean lighting series  Ordinary lighting series
LED tube series
