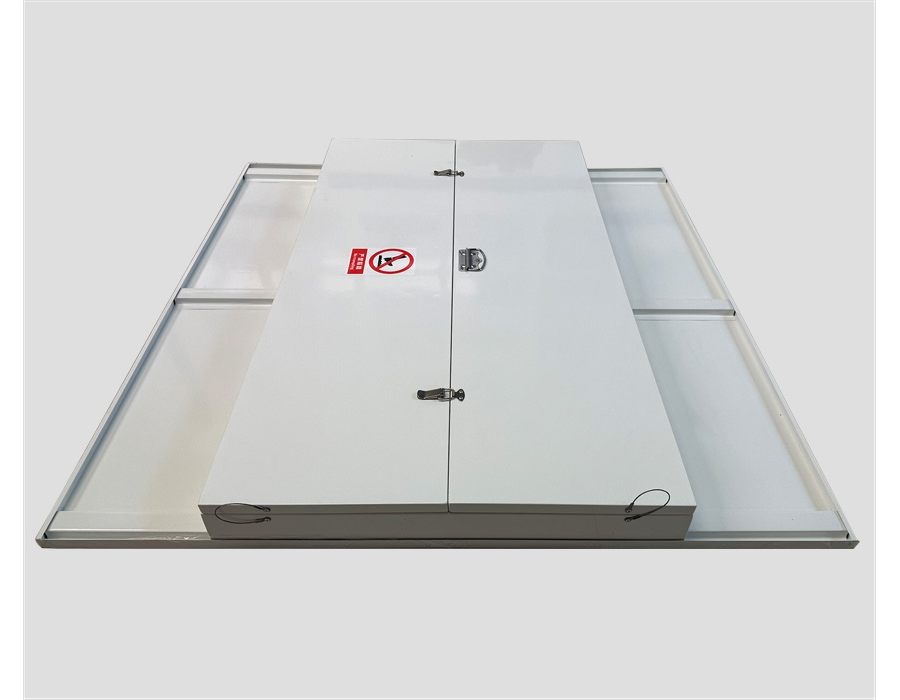

The lighting fixture fits perfectly onto the joist and is easy to install. A high-density seal is filled between the lamp body and the back cover, ensuring no dust accumulation, easy cleaning, and no glare. The back cover adopts a door-opening design, secured with high-quality buckles for convenient opening and easy maintenance. The overall dimensional error is less than +/-1mm, and the flatness meets JIS141 standards.
Product Features:
Lamp body: Made of non-radiation-polluting, galvanized, anti-static, and painted four-fold steel plate.
Load-bearing capacity: 255KG/㎡.

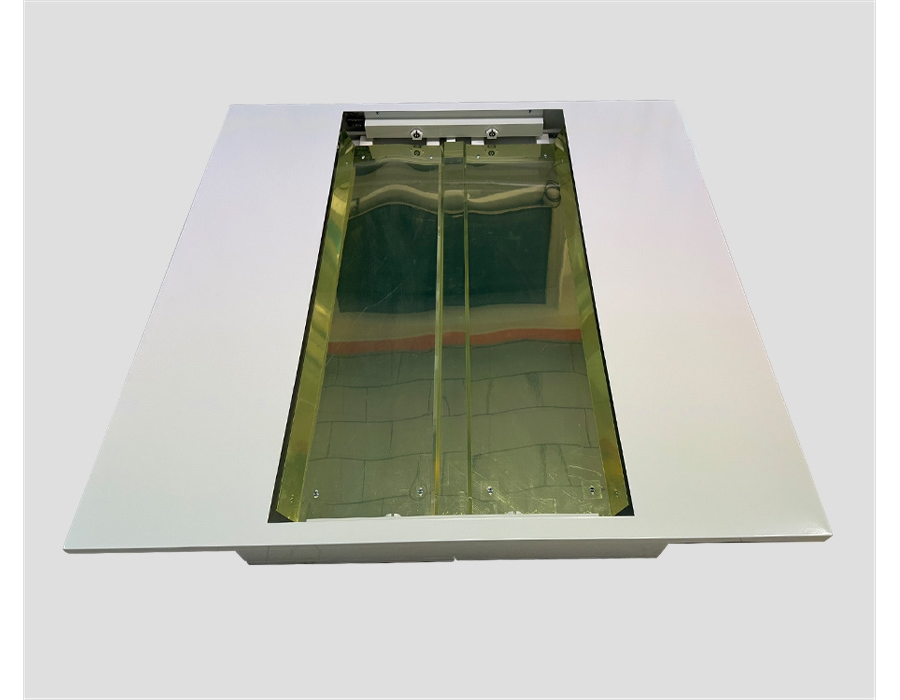

Lampshade: Made of impact-resistant and anti-aging acrylic, with options including milky white acrylic, transparent acrylic, crystal-clear board, and tempered glass.
Supporting light source: LED white light tube or UV-blocking LED yellow light (filtering harmful spectrum below 500nm).
Protection level: IP40/IP65
Product standards and technical requirements:
GB 17625.1-2022; GB/T 17743-2021;GB/T 7000.1-2023;GB/T7000.202-2023
| Product Model | power(LED) |
Lamp body dimensions ( mm ) |
luminous flux (lm) |
功率因数 |
| HR-MF 318 | 3×18W | 1170×1170×130 | 3×2600 | 0.95 |
| HR-MF 418 | 4×18W | 1170×1170×130 | 4×2600 | 0.95 |
| HR-MF 518 | 5×18W | 1170×1170×130 | 5×2600 | 0.95 |
| HR-MF 318 | 3×20W(Amber) | 1170×1170×130 | 3×2500 | 0.95 |
| HR-MF 418 | 4×20W(Amber) | 1170×1170×130 | 4×2500 | 0.95 |
| HR-MF 518 | 5×20W(Amber) | 1170×1170×130 | 5×2500 | 0.95 |
